C3000D6e Cummins 3000kw w/ FULL ENCLOSURE 60Hz 480v QSK95 Diesel Generator Set
C3000D6e Cummins 3000kw w/ FULL ENCLOSURE 60Hz 480V QSK95 Diesel Generator Set CUSTOM OR ABOVE GROUND TANK EXTRA
DOWNLOAD MECHANICAL UNIT DRAWINGS
Technical Specifications
- Year: 2025
- Manufacturer: Cummins
- Generator Model: C3000D6E
- Serial Number: A250414124
- kW: 3,000
- kVA: 3,750
- Voltage: 277/480
- Amperage: 4,510
- Frequency: 60 Hz
- RPM: 1,800
- Hours: 0
- Phase Type: 3-Phase
- Power Rating: Continuous
- Generator Insulation Class: Class H
- Control Panel: Cummins Power Command 3.3 Digital Control
- Jacket Water Heater: Yes

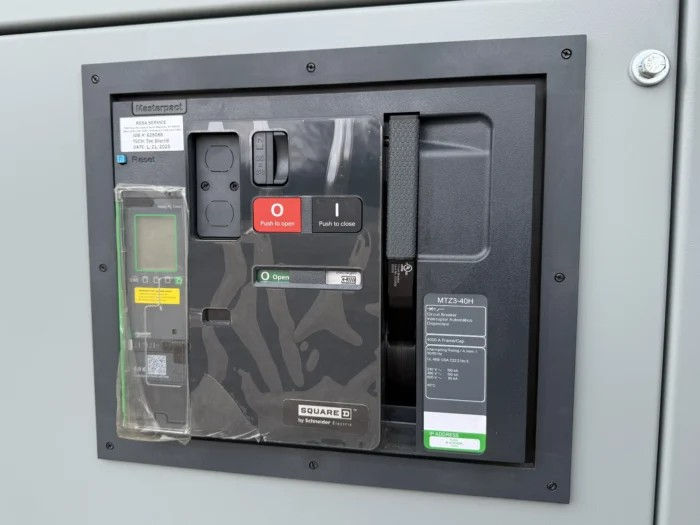

- Breaker: Main-Line Circuit Breaker
- Enclosure Type: Sound Attenuated Enclosure
- Engine Manufacturer: Cummins
- Engine Model: QSK95-G9
- Emissions Tier: EPA Tier 2
- Stock Number: 1304
- Dimensions (L x W x H): 596" × 180" × 163"
- Weight (lbs.): 125,000 lbs.
Description:
Cummins® commercial generator sets are fully integrated power generation systems providing optimum performance, fuel economy, reliability and versatility for stationary Standby, Prime and Continuous power applications. Features Cummins Heavy-Duty Engine - Rugged 4 cycle, industrial diesel delivers reliable power, low emissions and fast response to load changes.
Alternator - Several alternator sizes offer selectable motor starting capability with low reactance windings, low waveform distortion with non-linear loads and fault clearing short circuit capability.
Control System - The Power Command® digital control is standard equipment and provides total genset system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, Amp SentryTM protective relay, output metering and auto-shutdown. Model C3500 D6e 60 Hz kW (kVA)
Cooling System - Standard and enhanced integral set-mounted radiator systems, designed and tested for rated ambient temperatures, simplifies facility design requirements for rejected heat. Also optional remote cooled configuration for non-factory supplied cooling systems.
Warranty and Service - Backed by a comprehensive warranty and worldwide distributor network. NFPA - The generator set accepts full rated load in a single step in accordance with NFPA 110 for Level 1 systems. ISO8528-5 G3 Capable - refer to factory for site and configuration specific transient performance classification
