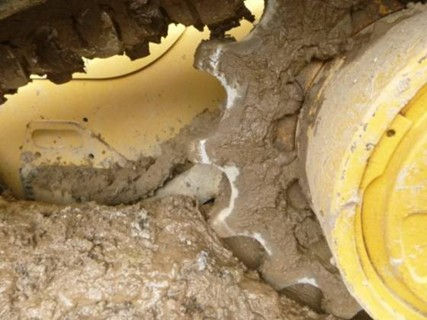

Cat® 259D3 COMPACT TRACK LOADER 2020
Hours: 2,044
Sold AS Is
Financing Available on our Main Paige
Extended CAT Warranty Available at Additional Cost
Inspection Reports are all available to email you.
Maintenance Records are Avail. ANY AND ALL WORK ON THIS MACHINE FOR ANY REASON WAS DONE BY THE CAT DEALER.
Scroll down the page to view full factory Specifications
Just Arrived for Sale:
Financing Available & Extended CAT Warranty Avail.
2018 CAT 289D Compact Track Loader 1,572 Hrs. $68,250
2019 CAT 289D Compact Track Loader 1,334 Hrs. $59,500
2020 CAT 259D3 Compact Track Loader 2,044 Hrs. $46,750
2021 CAT 305E2 CR Track Excavator 1,355 Hrs. $68,250
The Cat® 259D3 Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions. The 259D3 features the following:

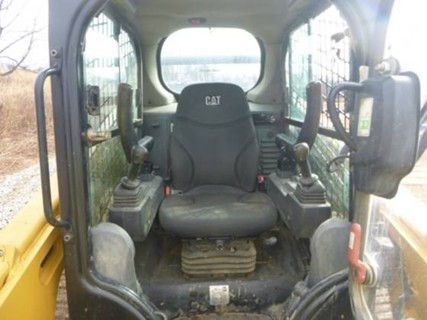

Industry leading sealed and pressurized cab option provides a cleaner and quieter operating environment with excellent work tool visibility.
Available high-back, heated, air ride seat with seat mounted adjustable joystick controls makes the D3 Series the industry leader in operator comfort.
High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.
High Flow hydraulic system is available for applications that demand maximum hydraulic work tool performance.
Cat C3.3B engine and high performance power train provide high engine horsepower and torque, allowing partial-throttle operation for lower sound levels and fuel consumption.
Cat “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.
Standard fully independent torsion axle suspension combined with the optional Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort.
Maximize machine capability and control with optional Advanced Display providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.
Ground level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.
Broad range of performance matched Cat Work Tools make the Cat Compact Track Loader the most versatile machine on the job siTE.
SPECIFICATIONS
Specifications
Dimensions
C
Height To Top Of Cab
6.93ft in
E
Ground Clearance
8.9in
G
Clearance At Max Lift And Dump
7.5ft in
H
Reach At Max Lift And Dump
2ft in
Clearance At Maximum Lift And Dump
89.9in
Departure Angle
35 degrees
Dump Angle
52degrees
Height - Top Of Cab
6.93ft in
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Bucket Pin Height - Carry Position
7.8in
Bucket Pin Height - Maximum Lift
10.09ft in
Bucket Pin Reach - Maximum Lift
9.4in
Turning Radius From Center - Machine Rear
61.5in
Vehicle Width (320 Mm/12.6 In Tracks)
66in
Vehicle Width (400 Mm/15.7 In Tracks)
69in
Length - Track On Ground
59in
Length - With Bucket On Ground
137.31in
Length - Without Bucket
108.9in
Length With Bucket
11.44ft in
Length With Out Bucket
9.08ft in
Maximum Dump Angle
52 degrees
Maximum Overall Height
154.1in
Maximum Reach - With Arms Parallel To Ground
51.4in
Overall Height
12.85ft in
Overall Length - Track
78.7in
Overall Track Length
6.56ft in
Rack Back Angle - Maximum Height
87 degrees
Reach - Maximum Lift/Dump
23.9in
Turning Radius From Center - Bucket
86in
Turning Radius From Center - Coupler
54.8in
Undercarriage
D
Length Of Track On Ground
11.44ft in
Ground Pressure
5.97psi
Ground Contact Area
1488.01in2
Specifications
Engine
Engine Make
DIT
Engine Model
Cat C3.3B
Gross Power
74.3hp
Net Power
73.2hp
Peak Torque
195.5lb ft
Torque Measured @
1500rpm
Displacement
203cu in
Bore
3.7in
Stroke
4.7in
Net Power - Iso 9249
73.9hp
Gross Power - Sae J1995
74.3hp
Engine Model
Cat C3.3B DIT (turbo)
Net Power - Sae 1349
73.2hp
Peak Torque - 1,500 Rpm - Sae J1995
195lb ft
Operational
Operating Weight
8847.2lb
Cooling System Fluid Capacity
3.7gal
Fuel Capacity
27.8gal
Engine Oil Capacity
3gal
Hydraulic System Fluid Capacity
13.3gal
Operating Voltage
12V
Alternator Supplied Amperage
80amps
Max Speed - Low Range
6mph
Max Speed - High Range
8.6mph
Power Train
Travel Speed - Forward Or Reverse - One Speed
5.9mph
Travel Speed - Forward Or Reverse - Two Speed
8.5mph
Loader
Breakout Force
5035.4lb
Tipping Load
5800.4lb
Operating Load
2899.1lb
Weights
Operating Weight
8945lb
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Operating Weight - 320 Mm/12.6 In Tracks
8846lb
Operating Weight - 400 Mm/15.7 In Tracks
8945lb
Hydraulic
Pump Flow
20.1gal/min
Relief Valve Pressure
3335.9psi
Hydraulic System
Hydraulic Flow - Standard - Loader Hydraulic Pressure
3335 psi
Hydraulic Flow - Standard - Loader Hydraulic Flow
20 gal/min
Hydraulic Flow - Standard - Hydraulic Power (Calculated)
39hp
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)
58hp
Hydraulic Flow - High Flow - Loader Hydraulic Pressure
3335 psi
Hydraulic Flow - High Flow - Loader Hydraulic Flow
30 gal/min
Operating Specifications
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Rated Operating Capacities - 50% Tipping Load
2900lb
Rated Operating Capacities - 35% Tipping Load
2030lb
Rated Operating Capacity With Optional Counterweight
3100lb
Tipping Load
5800lb
Breakout Force - Tilt Cylinder
5035lb
Ground Contact Area - With 400 Mm/15.7 In Track
1848in2
Ground Pressure - With 400 Mm/15.7 In Track
4.8 psi
Ground Contact Area - With 320 Mm/12.6 In Track
1483in2
Ground Pressure - With 320 Mm/12.6 In Track
6 psi
Service Refill Capacities
Cooling System
3.7gal
Fuel Tank
27.7gal
Hydraulic Tank
10.3gal
Engine Crankcase
3gal
Hydraulic System
13.2gal
Cab
Rops
ISO 3471:2008
Fops
ISO 3449:2005 Level I
Fops Level Ii
ISO 3449:2005 Level II
Air Conditioning System
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Noise Level
Note (1)
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (2)
**The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (3)
***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Inside Cab**
83 dB(A)
Outside Cab***
103 dB(A)
