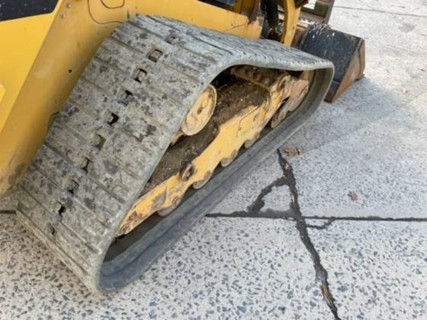

Cat® 289D COMPACT TRACK LOADER 2019
Hours: 1,334
Sold AS Is
Financing Available on our Main Paige
Extended CAT Warranty Available at Additional Cost
Inspection Reports are all available to email you.
Maintenance Records are Avail. ANY AND ALL WORK ON THIS MACHINE FOR ANY REASON WAS DONE BY THE CAT DEALER.
Scroll down the page to view full factory Specifications
Just Arrived for Sale:
Financing Available & Extended CAT Warranty Avail.
2018 CAT 289D Compact Track Loader 1,572 Hrs. $68,250
2020 CAT 259D3 Compact Track Loader 2,044 Hrs. $46,750
2021 CAT 305E2 CR Track Excavator 1,355 Hrs. $68,250
FEATURES: The Cat® 289D Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions. The 289D features the following:
Industry leading sealed and pressurized cab option provides a cleaner and quieter operating environment with excellent work tool visibility.
Available high-back, heated, air ride seat with seat mounted adjustable joystick controls makes the D Series the industry leader in operator comfort.
High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.
High Flow XPS hydraulic system is available for applications that demand maximum hydraulic work tool performance.
Cat C3.3B engine and high performance power train provide high engine horsepower and torque, allowing partial-throttle operation for lower sound levels and fuel consumption.
Cat “Intelligent Leveling” system (ILEV) provides industry leading technology, integration and optional features such as dual direction self level, work tool return to dig and work tool positioner.
Standard fully independent torsion axle suspension combined with the optional Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort.
Maximize machine capability and control with optional Advanced Display providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.
Ground level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.
Broad range of performance matched Cat Work Tools make the Cat Compact Track Loader the most versatile machine on the job site.
SPECIFICATIONS
Dimensions
B
Width Over Tracks
6.34ft in
C
Height To Top Of Cab
6.94ft in
E
Ground Clearance
8.9in
G
Clearance At Max Lift And Dump
7.84ft in
H
Reach At Max Lift And Dump
2.5ft in
Departure Angle
33 degrees
Dump Angle
51degrees
Height - Top Of Cab
6.94ft in
Length - Track On Ground
64.2in
Length - With Bucket On Ground
146.2in
Length - Without Bucket
117.9in
Length With Bucket
12.19ft in
Bucket Pin Height - Carry Position
7.5in
Bucket Pin Height - Maximum Lift
10.43ft in
Bucket Pin Reach - Maximum Lift
14.5in
Clearance At Maximum Lift And Dump
94in
Turning Radius From Center - Machine Rear
70.7in
Vehicle Width (400 Mm/15.7 In Tracks)
76in
Vehicle Width (450 Mm/17.7 In Tracks)
78in
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Length With Out Bucket
9.83ft in
Maximum Dump Angle
51 degrees
Maximum Overall Height
158.1in
Maximum Reach - With Arms Parallel To Ground
50in
Overall Height
13.18ft in
Overall Length - Track
83.8in
Overall Track Length
6.99ft in
Rack Back Angle - Maximum Height
84 degrees
Reach - Maximum Lift/Dump
30in
Turning Radius From Center - Bucket
88.8in
Turning Radius From Center - Coupler
55.5in
Undercarriage
D
Length Of Track On Ground
5.35ft in
Ground Pressure
5.24psi
Ground Contact Area
2015.01in2
Specifications
Engine
Engine Make
DIT
Engine Model
Cat C3.3B
Gross Power
74.3hp
Net Power
72.9hp
Peak Torque
195.5lb ft
Torque Measured @
1500rpm
Displacement
203cu in
Bore
3.7in
Stroke
4.7in
Net Power - Iso 9249
73.7hp
Gross Power - Sae J1995
74.3hp
Engine Model
Cat C3.3B DIT (turbo)
Net Power - Sae 1349
72.9hp
Peak Torque - 1,500 Rpm - Sae J1995
195lb ft
Operational
Operating Weight
10533.7lb
Cooling System Fluid Capacity
3.7gal
Fuel Capacity
24.9gal
Hydraulic System Fluid Capacity
13.8gal
Operating Voltage
12V
Alternator Supplied Amperage
80amps
Max Speed - Low Range
4.5mph
Max Speed - High Range
7.1mph
Power Train
Travel Speed - Forward Or Reverse - One Speed
4.5mph
Travel Speed - Forward Or Reverse - Two Speed
7mph
Loader
Breakout Force
7290.7lb
Tipping Load
7599.4lb
Weights
Operating Weight
10533lb
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Hydraulic
Pump Flow
22.8gal/min
Relief Valve Pressure
3335.9psi
Hydraulic System
Hydraulic Flow - High Flow Xps - Hydraulic Power (Calculated)
76hp
Hydraulic Flow - Standard - Loader Hydraulic Pressure
3335 psi
Hydraulic Flow - Standard - Loader Hydraulic Flow
23 psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated)
44hp
Hydraulic Flow - High Flow Xps - Maximum Loader Hydraulic Pressure
4061 psi
Hydraulic Flow - High Flow Xps - Maximum Loader Hydraulic Flow
32 gal/min
Operating Specifications
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Rated Operating Capacities - 50% Tipping Load
3800lb
Rated Operating Capacities - 35% Tipping Load
2660lb
Rated Operating Capacity With Optional Counterweight
4050lb
Tipping Load
7600lb
Breakout Force - Tilt Cylinder
7291lb
Ground Contact Area - With 400 Mm/15.7 In Track
2015in2
Ground Contact Area - With 450 Mm/17.7 In Track
2272in2
Ground Pressure - With 400 Mm/15.7 In Track
5.2 psi
Ground Pressure - With 450 Mm/17.7 In Track
4.6 psi
Service Refill Capacities
Cooling System
3.7gal
Fuel Tank
24.8gal
Hydraulic Tank
10.3gal
Engine Crankcase
3gal
Hydraulic System
13.7gal
Cab
Rops
ISO 3471:2008
Fops
ISO 3449:2005 Level I
Fops Level Ii
ISO 3449:2005 Level II
Air Conditioning System
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.
Noise Level
Note (1)
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (2)
**The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (3)
***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Inside Cab**
83 dB(A)
Outside Cab***
103 dB(A)
